1969 Ford Mustang Hardtop 2-Dr. Hardtop
Base Mustang hardtop serving as foundation for Boss, Mach 1, and Grande variants
9R01H173453
8 Cyl. 351 C.I. (2-V) (250 HP)
Engine
2-Dr. Hardtop
Body
San Jose, CA
Plant
Muscle Car Era
Era

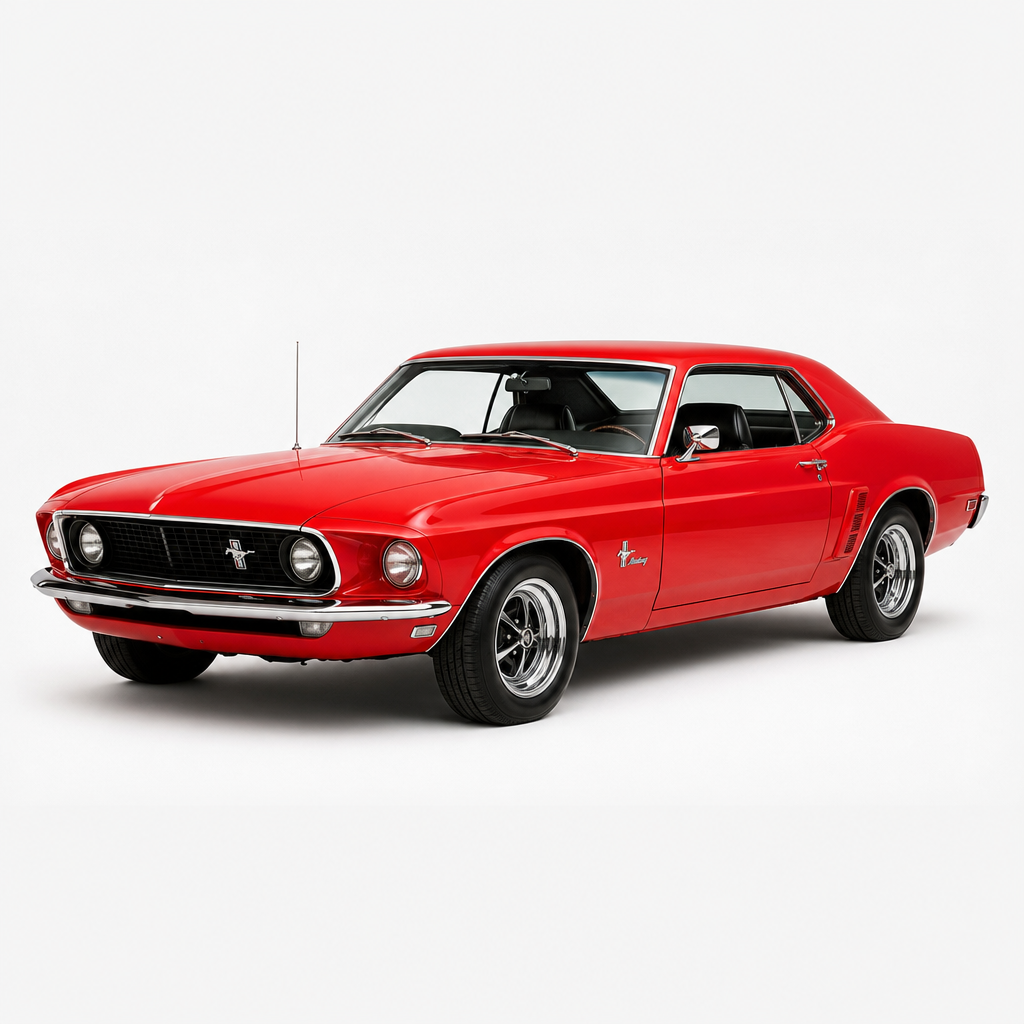

No factory image on file
1969 Ford Mustang Hardtop
VIN Breakdown
| Position | Value | Decoded |
|---|---|---|
| Year Code | 9 | 1969 |
| Plant Code | R | San Jose, CA |
| Model Code | 01 | Mustang Hardtop |
| Engine Code | H | 8 Cyl. 351 C.I. (2-V) (250 HP) |
| Serial Number | 173453 | Production #173453 |
Basic Information
MakeFord
ModelMustang Hardtop
Year1969
Body Style2-Dr. Hardtop
ManufacturerFord Motor Company
EraMuscle Car Era
Engine & Details
Engine8 Cyl. 351 C.I. (2-V) (250 HP)
Cylinders8
Displacement351 CID
Horsepower250 HP
Compression Ratio9.5:1
Carburetor2 BC
TransmissionM & A
Assembly PlantSan Jose, CA
Plant CodeR
Pattern SourceFord
Confidence95%
Original Specifications
Weight2931
Length187.4
Width71.3
Height51.3
Wheelbase108
Rear tread58.5
Source: Historical automotive documentation (1960-1972)
Powertrain Details Enhanced Data
Axle Type
Semifloating
Pricing & Production Enhanced Data
Original Base Price
$2849.00
No. Produced
22182
Body & Style Enhanced Data
No. Doors
2
Dimensions Enhanced Data
Weight
2931
lbs
Length
187.4
in.
Width
71.3
in.
Height
51.3
in.
Additional Specifications Enhanced Data
Make
Ford
Type
Single downdraft
Brake Horsepower
120@4400
hp
Valve Lifters
Hydraulic
Colors
Exterior Colors
Color Options (30)
Battery
12
V
Exhaust System
Single
Radiator
Tubular and fin
Ignition System
Distributor and coil
Cooling System
9 Quarts
Fuel Type
Regular
Cooling System
Centrifugal water pump
Optional Equipment
351 cu. in. V8 engine
Optional Equipment
Air conditioning
Optional Equipment
Front disc rear drum brakes
Optional Equipment
Radio
Optional Equipment
Speed control device
Optional Equipment
240 cu. in. Inline 6 engine
Optional Equipment
Power windows
Optional Equipment
390 cu. in. V8 engine
Optional Equipment
Power steering
Optional Equipment
Select-Shift automatic transmission
Steering Gear
Magic Circle recirculating ball
Rear Suspension
Hotchkiss
Front Suspension
Independent ball joint with coil springs
Drive
Rear wheel drive
VIN Location
On plate on top of left side of dashboard visible through windshield.
Tire Size
7.35 x 14
Spare Location
Trunk
Series
Mustang
Model Year
1969
Origin
United States
Model Number
65E
Body Maker
Ford
Brake Size
9
in.
Emergency
Cable and conduit on rear service brakes
Service
Dual hydraulic
Oil
4.5
qt.
Fuel
20
gal.
Rear Differential
2.5
pt.
Transmission
3.5
pt.
Carburetor
Autolite
Displacement
200
cu. in.
Type
Inline 6 overhead valve
Type
Fully synchronized
Compression Ratio-Std
8.1
:1
Rated Horsepower
32.5
hp
Torque
190@2400
ft/lbs
Main Bearings
7
Lubrication
Pressure to all bearings excluding wrist pin
Cylinders
6
Rear Tread
58.5
in.
Wheelbase
108
in.
Differential Ratio
3.08
:1
Differential
Hypoid
Clutch Type
Single dry plate
No. Of Gears
3
1st
2.42
:1
2nd
1.61
:1
3rd
1
:1
5th
Not applicable
:1
Reverse
2.33
:1
B
&s 3.68 & 3.13
Enhanced Data Note: The enhanced vehicle data shown above represents the base vehicle configuration as manufactured. Individual vehicles may vary depending on factory options and modifications made throughout the vehicle's history.
