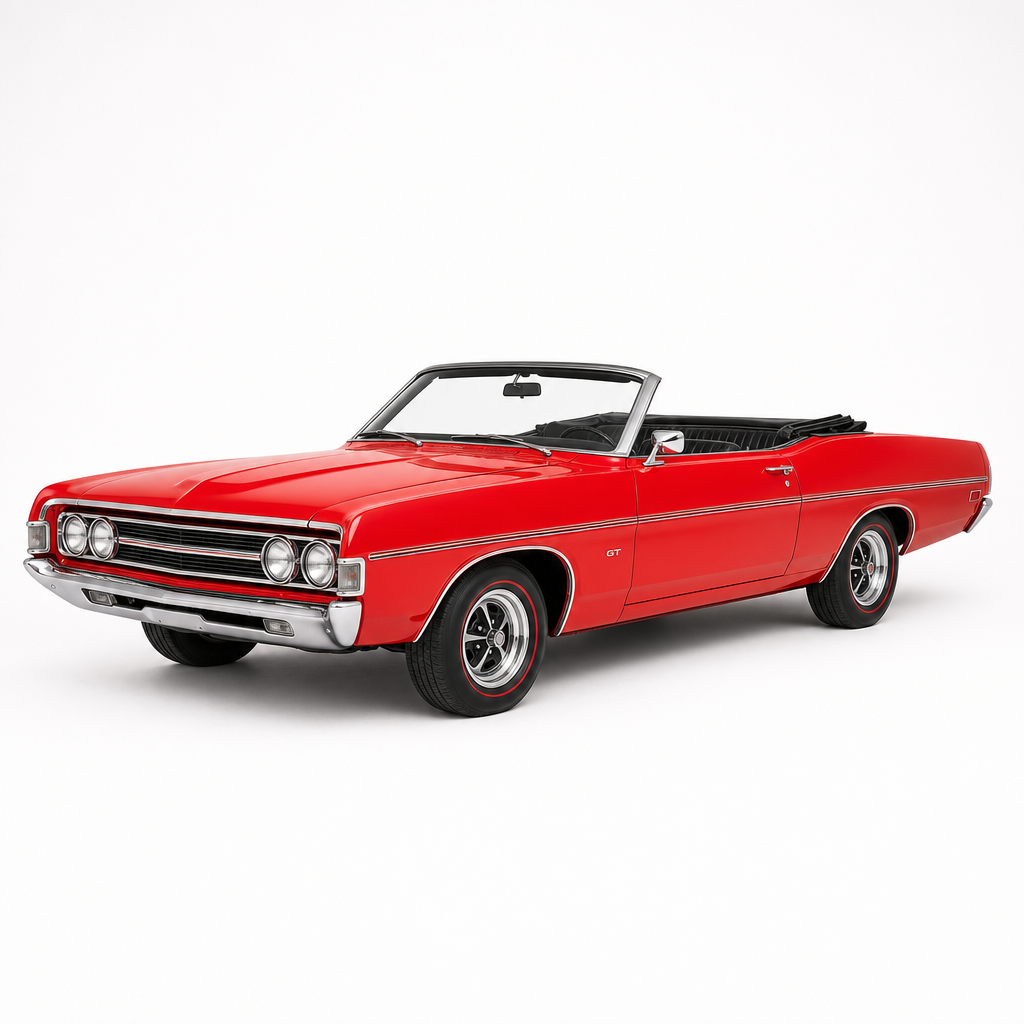

1969 Ford Torino GT 2-Dr. Convertible

Only year for Torino GT convertible before discontinuation
9H43F213418
8 Cyl. 302 C.I. (2-V) (220 HP)
Engine
2-Dr. Convertible
Body
Lorain, OH
Plant
Muscle Car Era
Era
1969 Ford Torino GT 2-Dr. Convertible

VIN Breakdown

PositionValueDecoded
Year Code 9 1969
Plant Code H Lorain, OH
Model Code 43 Torino GT
Engine Code F 8 Cyl. 302 C.I. (2-V) (220 HP)
Serial Number 213418 Production #213418

Basic Information

MakeFord
ModelTorino GT
Year1969
Body Style2-Dr. Convertible
ManufacturerFord Motor Company
EraMuscle Car Era

Engine & Details

Engine8 Cyl. 302 C.I. (2-V) (220 HP)
Cylinders8
Displacement302 CID
Horsepower220 HP
Compression Ratio9.5:1
Carburetor2 BC
TransmissionM & A
Assembly PlantLorain, OH
Plant CodeH
Pattern SourceFord
Confidence95%

Original Specifications

Weight3436
Length201.1
Width74.6
Height52.8
Wheelbase116
Front tread58.8
Rear tread58.5

Source: Historical automotive documentation (1960-1972)

Powertrain Details Enhanced Data

Axle Type Semifloating

Pricing & Production Enhanced Data

Original Base Price $3022.00
No. Produced 2552

Body & Style Enhanced Data

No. Doors 2

Dimensions Enhanced Data

Weight 3436 lbs
Length 201.1 in.
Width 74.6 in.
Height 52.8 in.

Additional Specifications Enhanced Data

Series Torino GT & GT2
Torque 295@2400 ft/lbs
Type Constant mesh
Displacement 302 cu. in.
Type Dual downdraft
Valve Lifters Hydraulic
Colors Exterior Colors
Color Options (30)
Ignition System Distributor and coil
Fuel Type Regular
Cooling System Centrifugal water pump
Radiator Tubular and fin
Battery 12 V
Cooling System 9.9 Quarts
Exhaust System Single
Optional Equipment 390 cu. in. V8 engine
Optional Equipment Air conditioning
Optional Equipment Select-Shift automatic transmission
Optional Equipment Front disc rear drum brakes
Optional Equipment 351 cu. in. V8 engine
Optional Equipment Radio
Optional Equipment 429 cu. in. V8 engine
Optional Equipment Power steering
Steering Gear Recirculating ball and nut
Front Suspension Independent ball joint with coil springs
Rear Suspension Hotchkiss
Drive Rear wheel drive
VIN Location On plate on top of left side of dashboard visible through windshield.
Spare Location Trunk
Tire Size 7.35 x 14
Origin United States
Make Ford
Model Year 1969
Model Number 76F
Body Maker Ford
Service Dual hydraulic
Brake Size 10 in.
Emergency Cable and conduit on rear service brakes
Fuel 20 gal.
Rear Differential 4 pt.
Oil 4.5 qt.
Transmission 3.5 pt.
Carburetor Autolite
Brake Horsepower 220@4600 hp
Rated Horsepower 51.2 hp
Cylinders 8
Lubrication Pressure to all bearings excluding wrist pin
Main Bearings 5
Type V8 overhead valve
Compression Ratio-Std 9.5 :1
Rear Tread 58.5 in.
Front Tread 58.8 in.
Wheelbase 116 in.
Differential Ratio 3.0 :1
Differential Hypoid
Clutch Size 9 inches
Clutch Type Single dry plate
No. Of Gears 3
1st 2.99 :1
2nd 1.75 :1
3rd 1 :1
5th Not applicable :1
Reverse 3.17 :1
B &s 4 & 3

Enhanced Data Note: The enhanced vehicle data shown above represents the base vehicle configuration as manufactured. Individual vehicles may vary depending on factory options and modifications made throughout the vehicle's history.
