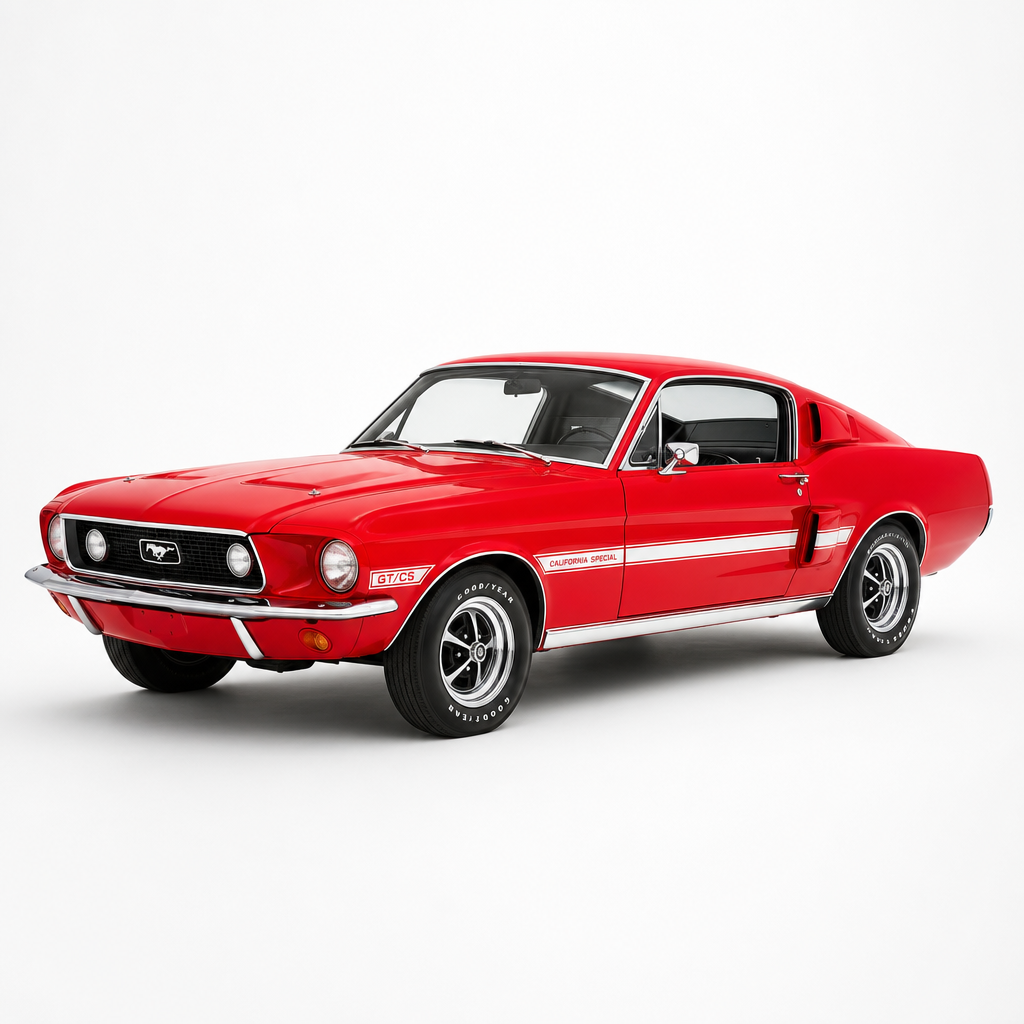

1968 Ford Mustang California Special (GT/CS) Coupe

The 1968 Mustang hardtop featured redesigned styling with a longer hood and shorter deck competing directly with the new Chevrolet Camaro.
8R01S156669
8 Cyl. 390 C.I. (4-V
Engine
Coupe
Body
San Jose, CA
Plant
Muscle Car Era
Era
1968 Ford Mustang California Special (GT/CS) Coupe

VIN Breakdown

PositionValueDecoded
Year Code 8 1968
Plant Code R San Jose, CA
Model Code 01 Mustang California Special (GT/CS)
Engine Code S 8 Cyl. 390 C.I. (4-V, GT) (325 HP)
Serial Number 156669 Production #156669

Basic Information

MakeFord
ModelMustang California Special (GT/CS)
Year1968
Body StyleCoupe
ManufacturerFord Motor Company
EraMuscle Car Era

Engine & Details

Engine8 Cyl. 390 C.I. (4-V, GT) (325 HP)
Cylinders8
Displacement390 CID
Horsepower325 HP
Compression Ratio10.5:1
Carburetor4 BC
TransmissionM & A
Assembly PlantSan Jose, CA
Plant CodeR
Pattern SourceFord
Confidence98%

Original Specifications

Weight2696
Width70.9
Height51.6
Length183.6
Wheelbase108
Rear tread58.5

Source: Historical automotive documentation (1960-1972)

Powertrain Details Enhanced Data

Axle Type Semifloating

Pricing & Production Enhanced Data

Original Base Price $2602.00
No. Produced 249447

Body & Style Enhanced Data

No. Doors 2

Dimensions Enhanced Data

Weight 2696 lbs
Width 70.9 in.
Height 51.6 in.
Length 183.6 in.

Additional Specifications Enhanced Data

Model Year 1968
Type Single downdraft
Type Inline 6 overhead valve
Type Constant mesh
Displacement 200 cu. in.
Colors Exterior Colors
Color Options (16)
Ignition System Distributor and coil
Battery 12 V
Radiator Down flow
Exhaust System Single
Cooling System 9.5 Quarts
Fuel Type Regular
Cooling System Centrifugal water pump
Optional Equipment 390 cu. in. V8 engine
Optional Equipment Cruise-O-Matic automatic transmission
Optional Equipment Speed control device
Optional Equipment Air conditioning
Optional Equipment 302 cu. in. V8 engine
Optional Equipment Radio
Optional Equipment Power antenna
Optional Equipment Power steering
Steering Gear Magic Circle recirculating ball
Front Suspension Independent ball joint with coil springs
Rear Suspension Longitudinal leaf spring
Drive Rear wheel drive
VIN Location On tab on instrument panel close to windshield on passenger side visible from outside.
Spare Location Trunk
Tire Size 6.95 x 14
Series Mustang
Make Ford
Origin United States
Body Maker Ford
Model Number 65A
Brake Size 9 in.
Service Dual hydraulic
Emergency Cable and conduit on rear service brakes
Oil 5 qt.
Rear Differential 2.5 pt.
Transmission 3.5 pt.
Fuel 16 gal.
Carburetor Autolite
Brake Horsepower 115@3800 hp
Differential Hypoid
Differential Ratio 3.2 :1
Wheelbase 108 in.
Rear Tread 58.5 in.
Cylinders 6
Lubrication Pressure to all bearings excluding wrist pin
Main Bearings 7
Rated Horsepower 32.5 hp
Compression Ratio-Std 8.8 :1
Torque 190@2200 ft/lbs
Valve Lifters Hydraulic
Clutch Type Semicentrifugal
No. Of Gears 3
1st 2.99 :1
2nd 1.75 :1
3rd 1 :1
5th Not applicable :1
Reverse 3.17 :1
B &s 3.68 & 3.13

Enhanced Data Note: The enhanced vehicle data shown above represents the base vehicle configuration as manufactured. Individual vehicles may vary depending on factory options and modifications made throughout the vehicle's history.
