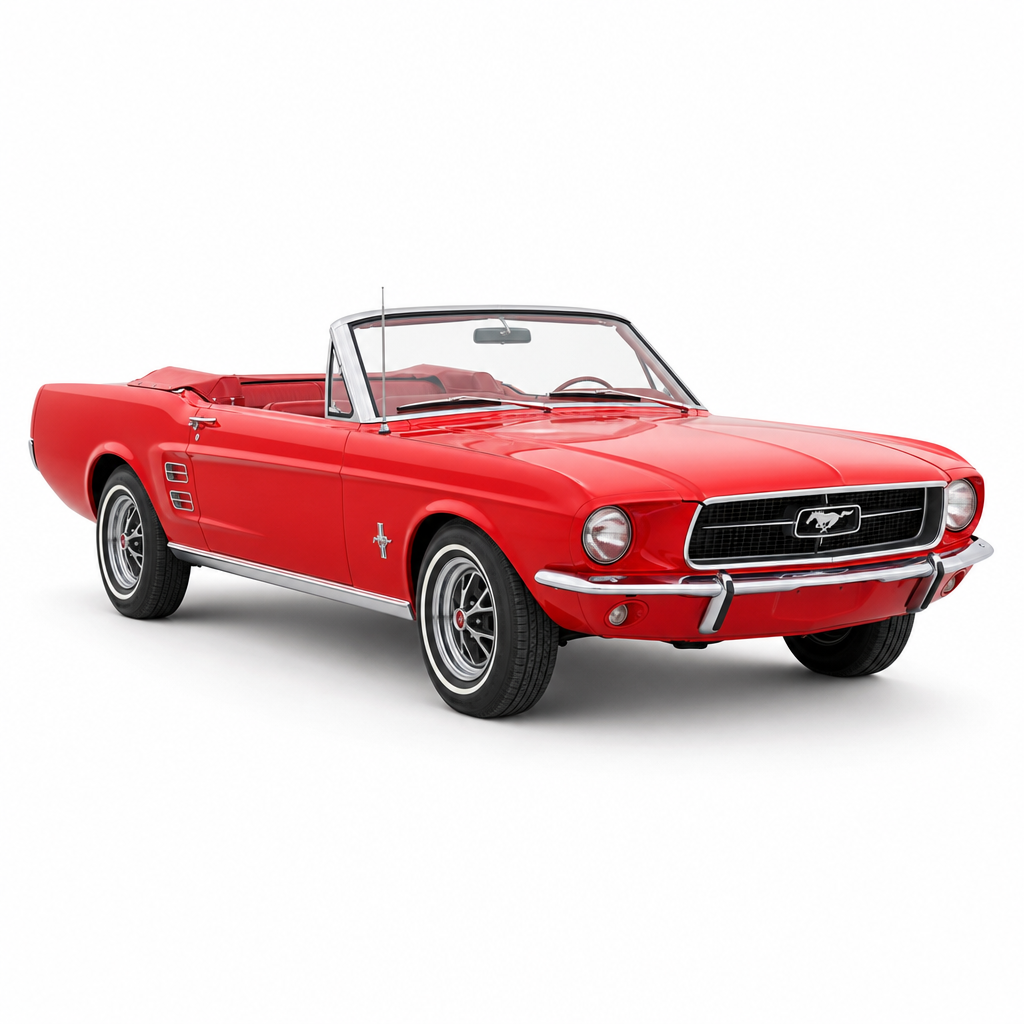

1967 Ford Mustang Convertible Convertible
The 1967 Mustang convertible offered open-air motoring with the pony car's new styling and available big-block V8 power. Perfect for cruising with the top down in America's favorite sports car.
7F03C119645
289 CID 4V V8
Engine
Convertible
Body
Dearborn, MI (River Rouge)
Plant
Muscle Car Era
Era
No factory image on file
1967 Ford Mustang Convertible
VIN Breakdown
| Position | Value | Decoded |
|---|---|---|
| Year Code | 7 | 1967 |
| Plant Code | F | Dearborn, MI (River Rouge) |
| Model Code | 03 | Mustang Convertible |
| Engine Code | C | 289 CID 4V V8 |
| Serial Number | 119645 | Production #119645 |
Basic Information
MakeFord
ModelMustang Convertible
Year1967
Body StyleConvertible
ManufacturerFord Motor Company
EraMuscle Car Era
Engine & Details
Engine289 CID 4V V8
Cylinders8
Displacement289 CID
Horsepower200 HP
Compression Ratio8.7:1
Carburetor2 BC
TransmissionM & A
Assembly PlantDearborn, MI (River Rouge)
Plant CodeF
Pattern SourceFord
Confidence95%
Original Specifications
Weight2738
Height51.6
Width70.9
Length183.6
Wheelbase108
Rear tread57.9
Source: Historical automotive documentation (1960-1972)
Powertrain Details Enhanced Data
Axle Type
Semifloating
Pricing & Production Enhanced Data
Original Base Price
$2698.00
No. Produced
44808
Body & Style Enhanced Data
No. Doors
2
Dimensions Enhanced Data
Weight
2738
lbs
Height
51.6
in.
Width
70.9
in.
Length
183.6
in.
Additional Specifications Enhanced Data
Model Year
1967
Valve Lifters
Hydraulic
Torque
190@2400
ft/lbs
Brake Horsepower
120@4400
hp
Type
Constant mesh
Colors
Exterior Colors
Color Options (16)
Fuel Type
Regular
Radiator
Down flow
Battery
12
V
Ignition System
Distributor and coil
Exhaust System
Single
Cooling System
Centrifugal water pump
Cooling System
9.5 Quarts
Optional Equipment
Speed control device
Optional Equipment
Air conditioning
Optional Equipment
Front disc rear drum brakes
Optional Equipment
289 cu. in. V8 engine
Optional Equipment
Cruise-O-Matic automatic transmission
Optional Equipment
Radio
Optional Equipment
Power brakes
Optional Equipment
Power steering
Steering Gear
Magic Circle recirculating ball
Rear Suspension
Longitudinal leaf spring
Front Suspension
Independent ball joint with coil springs
Drive
Rear wheel drive
VIN Location
On the top surface of the radiator & front fender apron support (near the radiator fill cap).
Spare Location
Trunk
Tire Size
6.95 x 14
Series
Mustang
Make
Ford
Origin
United States
Body Maker
Ford
Model Number
76A
Brake Size
9
in.
Service
Dual hydraulic
Emergency
Cable and conduit on rear service brakes
Oil
4.5
qt.
Rear Differential
2.5
pt.
Fuel
16
gal.
Transmission
3.5
pt.
Carburetor
Autolite
Type
Single downdraft
Differential
Hypoid
Differential Ratio
3.2
:1
Wheelbase
108
in.
Rear Tread
57.9
in.
Main Bearings
7
Cylinders
6
Rated Horsepower
32.5
hp
Displacement
200
cu. in.
Compression Ratio-Std
9.2
:1
Lubrication
Pressure to all bearings excluding wrist pin
Type
Inline 6 overhead valve
Clutch Type
Semicentrifugal
No. Of Gears
3
1st
2.99
:1
2nd
1.75
:1
3rd
1
:1
5th
Not applicable
:1
Reverse
3.17
:1
B
&s 3.68 & 3.13
Enhanced Data Note: The enhanced vehicle data shown above represents the base vehicle configuration as manufactured. Individual vehicles may vary depending on factory options and modifications made throughout the vehicle's history.
