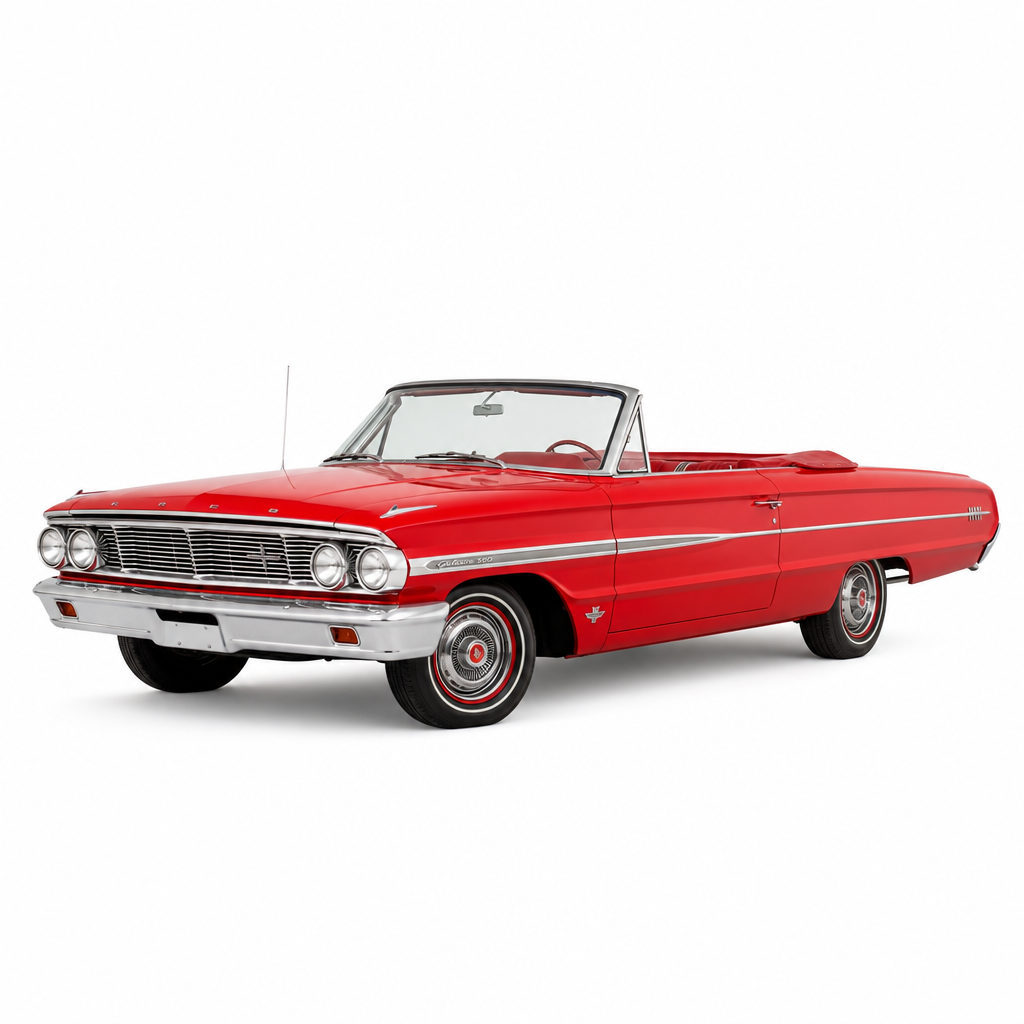

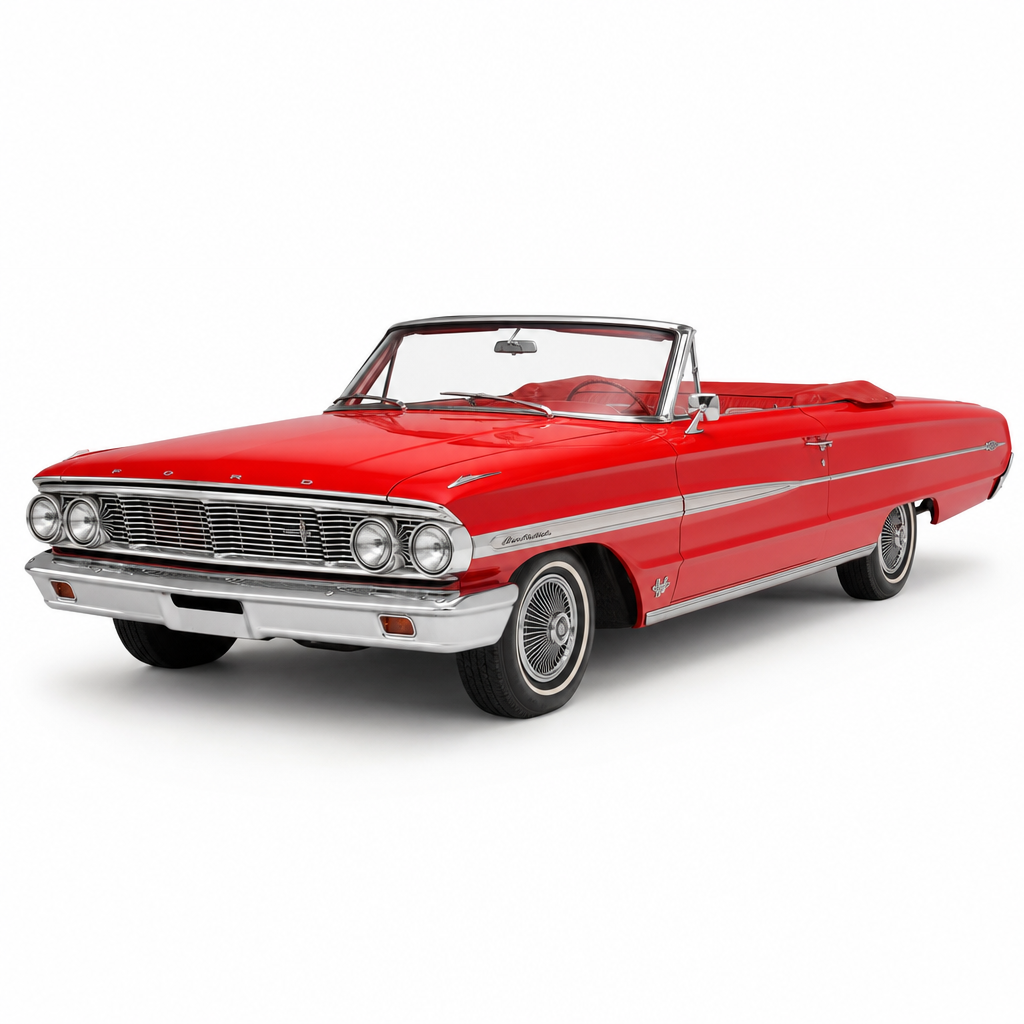

1964 Ford Galaxie 500XL 2-Dr. Convertible

The Galaxie 500XL convertible offered top-down luxury with bucket seats and premium features.
4J69Z107190
8 Cyl. 390 C.I. (300 HP)
Engine
2-Dr. Convertible
Body
Los Angeles, CA
Plant
Muscle Car Era
Era
1964 Ford Galaxie 500XL 2-Dr. Convertible

VIN Breakdown

PositionValueDecoded
Year Code 4 1964
Plant Code J Los Angeles, CA
Model Code 69 Galaxie 500XL
Engine Code Z 8 Cyl. 390 C.I. (300 HP)
Serial Number 107190 Production #107190

Basic Information

MakeFord
ModelGalaxie 500XL
Year1964
Body Style2-Dr. Convertible
ManufacturerFord Motor Company
EraMuscle Car Era

Engine & Details

Engine8 Cyl. 390 C.I. (300 HP)
Cylinders8
Displacement390 CID
Horsepower300 HP
Compression Ratio10.1:1
Carburetor4 BC
TransmissionAUTO
Assembly PlantLos Angeles, CA
Plant CodeJ
Pattern SourceFord
Confidence95%

Original Specifications

Width80
Length209.8
Height55.5
Wheelbase119
Front tread61
Rear tread60

Source: Historical automotive documentation (1960-1972)

Powertrain Details Enhanced Data

Axle Type Semifloating

Pricing & Production Enhanced Data

Original Base Price $3484.00
No. Produced 15169

Body & Style Enhanced Data

No. Doors 2

Dimensions Enhanced Data

Width 80 in.
Length 209.8 in.
Height 55.5 in.

Additional Specifications Enhanced Data

Series Galaxie 500XL - V8
Type Constant mesh
Valve Lifters Hydraulic
Displacement 289 cu. in.
Type Dual downdraft
Brake Horsepower 195@4400 hp
Type V8 overhead valve
Colors Exterior Colors
Color Options (16)
Ignition System Distributor and coil
Cooling System 19.5 Quarts
Cooling System Centrifugal water pump
Exhaust System Single
Radiator Tube and corrugated fin & core
Battery 12 V
Optional Equipment Air conditioning
Optional Equipment 390 cu. in. V8 engine
Optional Equipment Cruise-O-Matic automatic transmission
Optional Equipment Pushbutton Radio
Optional Equipment 352 cu. in. V8 engine
Optional Equipment Power windows
Optional Equipment Power brakes
Optional Equipment Power steering
Optional Equipment Power seats
Steering Gear Recirculating ball and nut
Front Suspension Independent ball joint with coil springs
Rear Suspension Longitudinal leaf spring
Drive Rear wheel drive
VIN Location On tab attached to top right side of dash panel in engine compartment
Tire Size 7.50 x 14
Spare Location Trunk
Origin United States
Make Ford
Model Year 1964
Model Number 76B
Body Maker Ford
Brake Size 11 in.
Emergency Rear service brakes
Service Hydraulic self-adjusting
Fuel 20 gal.
Transmission 3 pt.
Rear Differential 5 pt.
Oil 5 qt.
Carburetor Own
Lubrication Pressure to all bearings excluding wrist pin
Torque 282@2400 ft/lbs
Compression Ratio-Std 8.6 :1
Cylinders 8
Main Bearings 5
Rated Horsepower 51.2 hp
Engine No. Location Plate on left front door pillar post.
Engine Numbers Last letter in serial no.
Rear Tread 60 in.
Front Tread 61 in.
Wheelbase 119 in.
Differential Hypoid
Differential Ratio 3.5 :1
Clutch Size 10.4 inches
Clutch Type Single dry plate
No. Of Gears 3
1st 2.42 :1
2nd 1.61 :1
3rd 1 :1
5th Not applicable :1
Reverse 2.33 :1
B &s 4 & 2.87

Enhanced Data Note: The enhanced vehicle data shown above represents the base vehicle configuration as manufactured. Individual vehicles may vary depending on factory options and modifications made throughout the vehicle's history.
